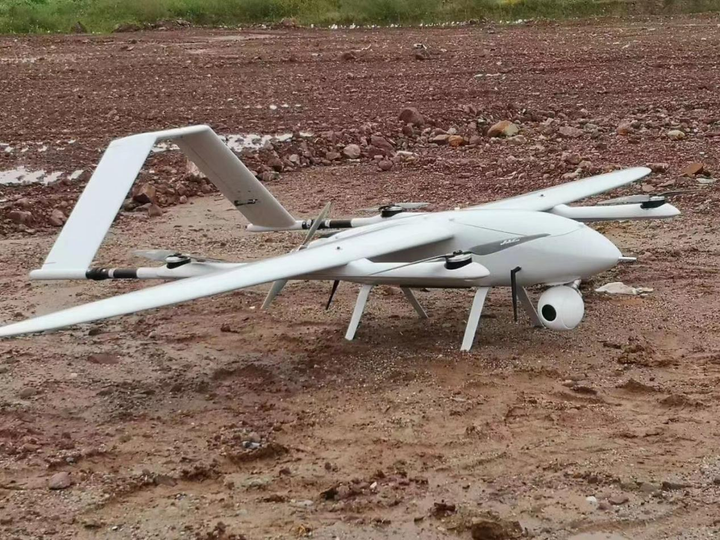

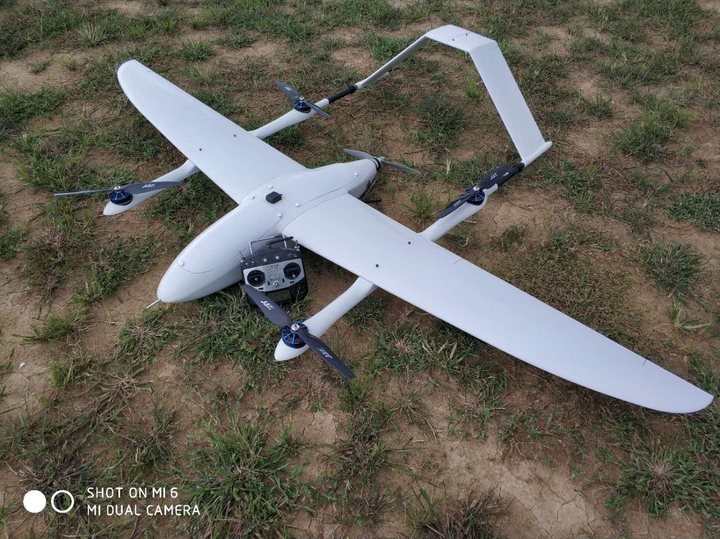

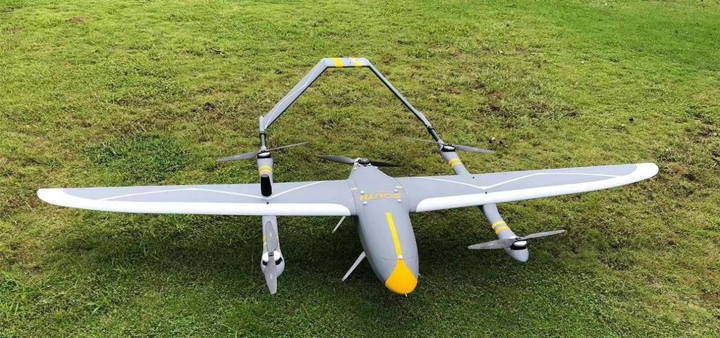

Chengfee CF-12E Long Range VTOL Fixed Wing UAV Carbon Fiber Drones UAV Battery Powered Aircraft

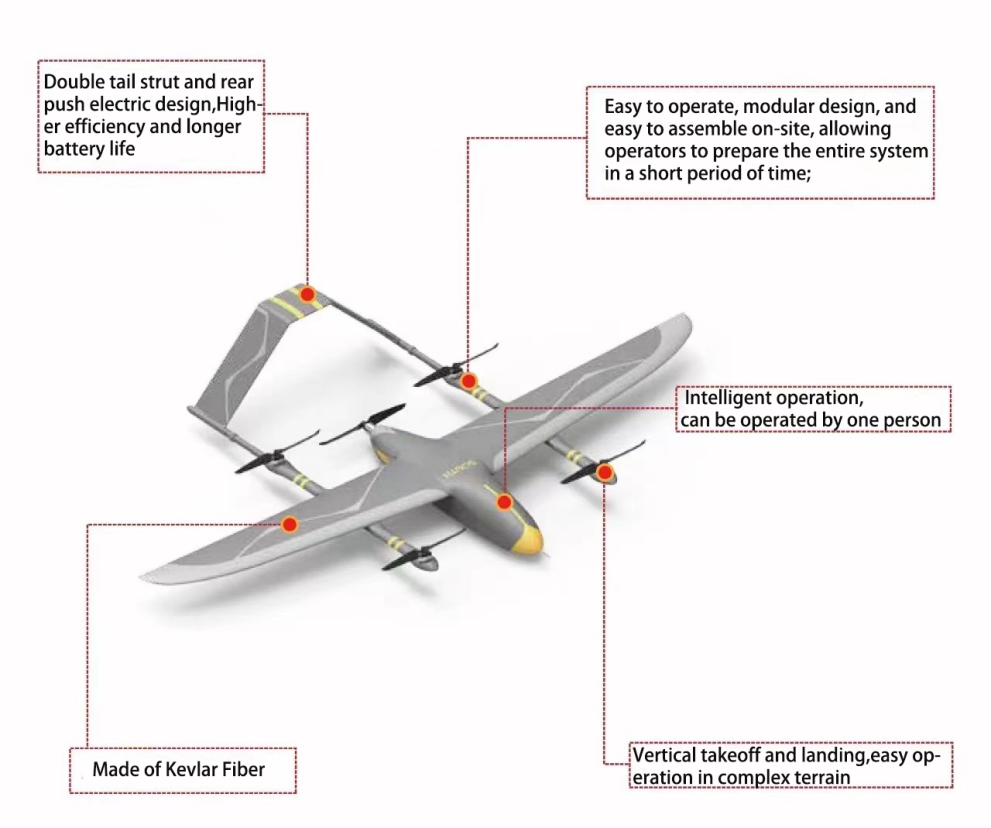

The fixed-wing combined with quadcopter compound wing overall layout is adopted to solve the problem of vertical take-off and landing of fixed-wing UAV in a simple and reliable way, which combines the characteristics of long flight time, high speed and long distance of fixed-wing UAV with the function of vertical take-off and landing of rotary-wing UAVs. The vertical take-off and landing mode greatly enhances the environmental adaptability of the UAV platform, which can operate smoothly in complex terrain such as mountains, hills, jungles and areas with dense buildings, greatly expanding the application scope of UAV. It is an ideal choice for industrial-grade UAV.
- Vertical take-off and landing: It has the take-off and landing mode of a rotary-wing UAV, greatly reducing the requirements for take-off and landing sites and airspace;
- Practical and efficient: featuring fixed-wing UAVs with long flight time, high speed, long distance, and large payload;
- Low cost of use: no need for complex and bulky launch and recovery equipment, no need to add additional recovery sensors;
- Easy to operate: Integrated with a dedicated flight control and navigation system, it can fly autonomously throughout the entire process. Operators only need to send a flight plan without requiring professional training or operational experience;
- Compact system: No need for complex auxiliary equipment, making transportation, deployment, maintenance, and dismantling simple.
Flight Parameters
|
Project |
Performance Index |
Project |
Performance Index |
|
Take-off and Landing Mode |
VTOL |
Wind Resistance (Head-on Wind) |
Level 6 |
|
Empty Weight |
<2.6kg |
Max Take-off Weight |
12kg |
|
Payload |
1kg |
Flight Speed |
65-100km/h |
|
Endurance |
>120min |
Cruising Speed |
70-90km/h |
