Description
EH30-TIR supports Ethernetoutput only, the video output resolution is 1080p/25fps, the effective pixel is 2.16MP.
The working principle of thermal camera is to detect by heat source, so it can be used to detect fire spark in forest and the location of people or animals etc.
Features:
-3-aixs high stabilized gimbal system
-CMOS 1/2.8″, 2.16megapixels
-30X/1080P optical zoom
-640*480 Thermal Camera
-Ethernetoutput
-Auto object tracking
-20°C~ 550°C temperature measurement range
-128G SD Card
-SBUS, TCP control
-Auto object tracking
-20°C~ 550°C temperature measurement range
-128G SD Card
-SBUS, TCP control
|
Operating voltage
|
12V-25V
|
|
Power
|
8.4W
|
|
Weight
|
800g
|
|
Memory card
|
Built-in 128G Micro SD card
|
|
Size
|
162mm x 140mm x 194mm
|
|
Video
|
RTSP video stream
|
|
Operating temperature
|
-20°C ~60°C
|
|
Store the temperature
|
-40°C ~80°C
|
|
Control accuracy
|
+0.008°
|
|
Control range
|
Pitch: 70° to -90.; Yaw: 360°
|

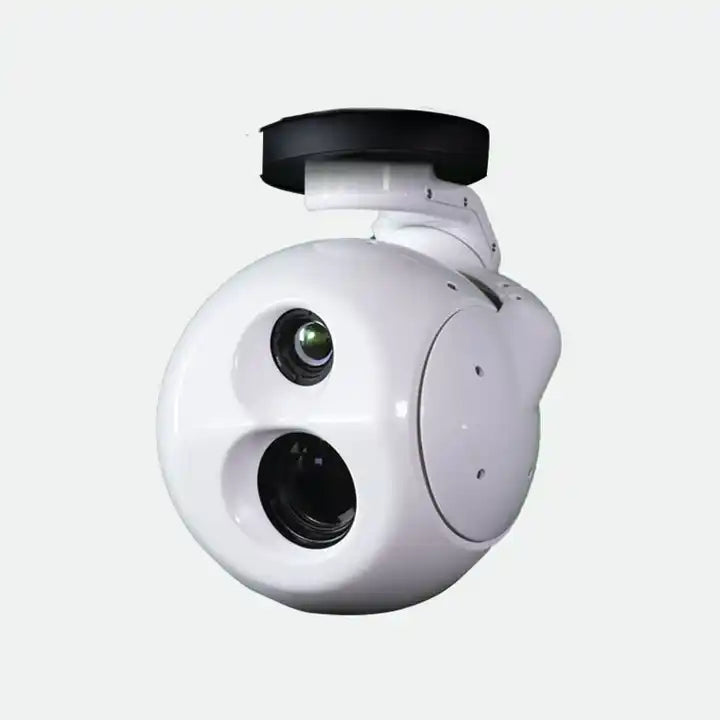

CHENGFEE EH30 TIR 30X Optical Zoom UAV Thermal Camera for Gimbal
$11,859.00
