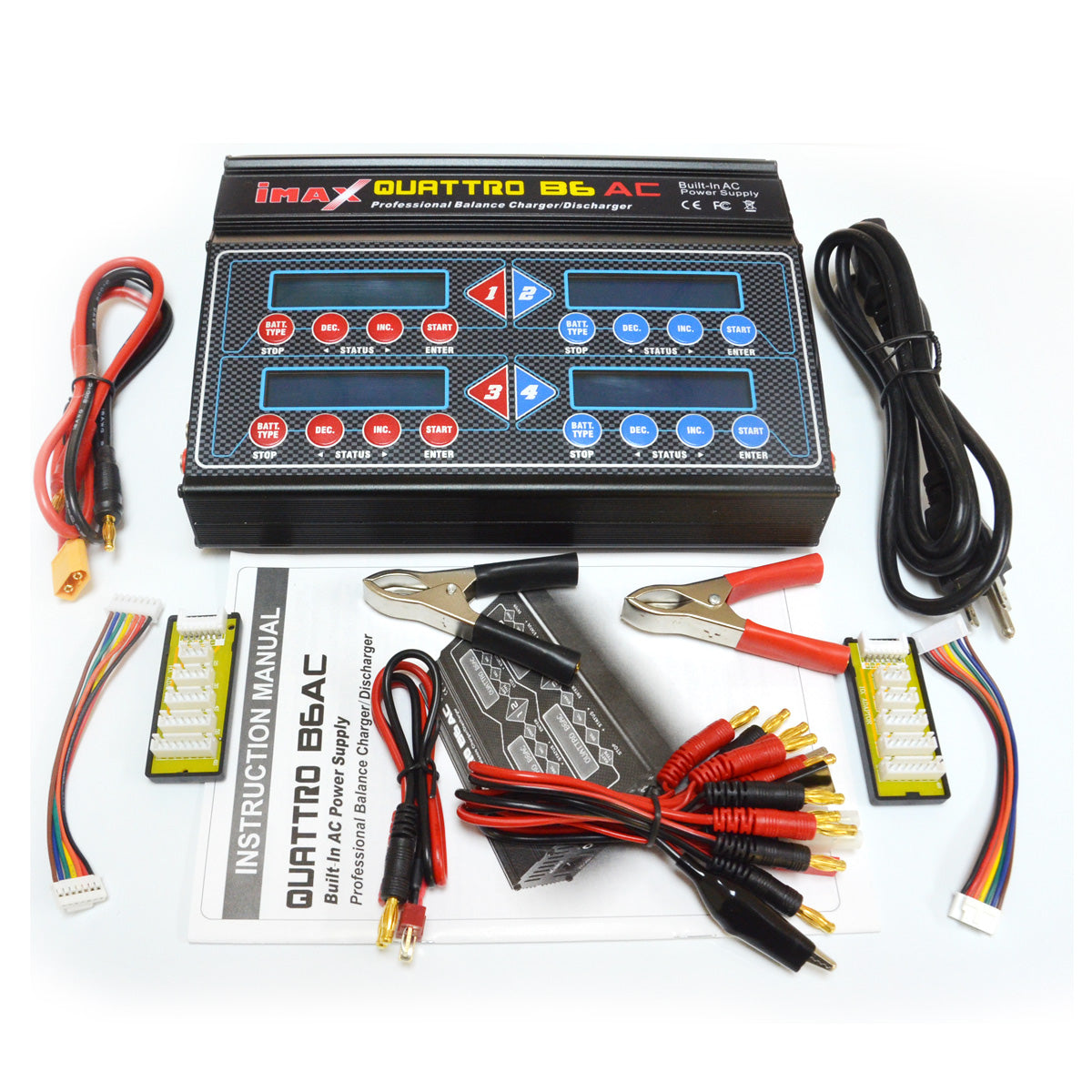

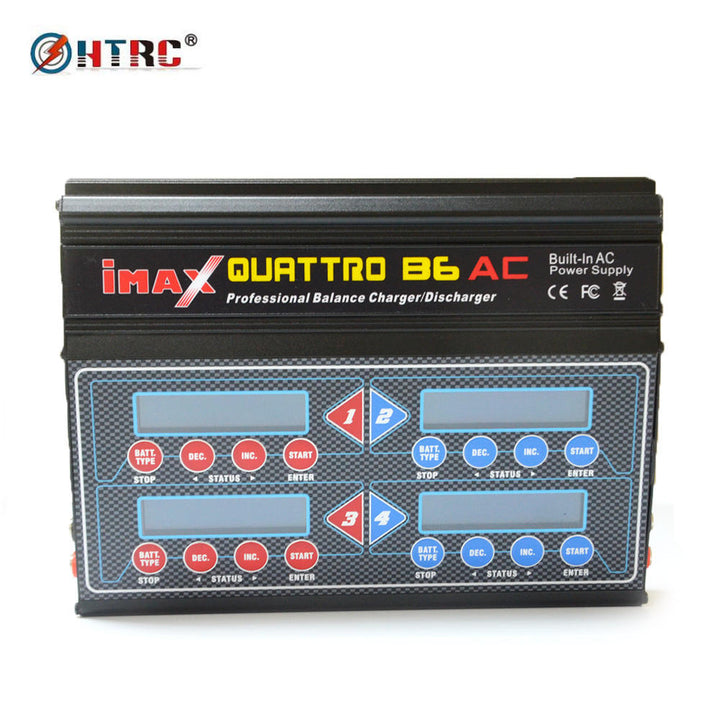

Hot HTRC 4B6AC iMAX Quattro B6AC 5A 80W*4 Professional RC Toy Lipo Balance Charger Discharger for 1-6s LiPo/Lion/LiFe Battery
Hot HTRC 4B6AC iMAX Quattro B6AC 5A 80W*4 Professional RC Toy Lipo Balance Charger Discharger for 1-6s LiPo/Lion/LiFe Battery.
QUATTRO B6AC allows you to plug 4 batteries into one charger simultaneously.
It will intelligently and automatically charge all 4 of them at once to their maximum capacity.
To top of it, the batteries being charged do not even need to have the same configuration.
You can connect different chemistry(Ni-MH/Ni-CD/LiPo/LiFe)batteries into any of the charging ports.
No more staying up late for charging batteries.
Features:
4 Independent Channel

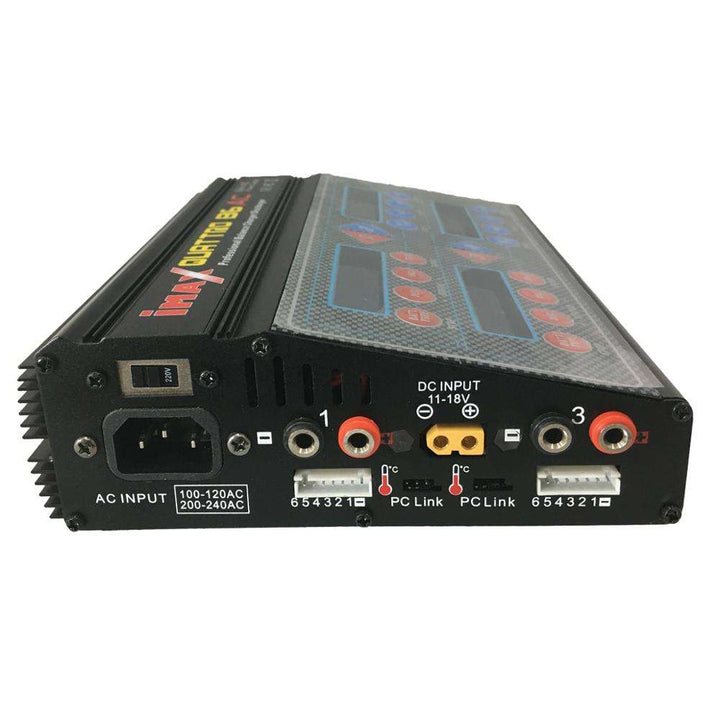

AC/DC Dual Input mode

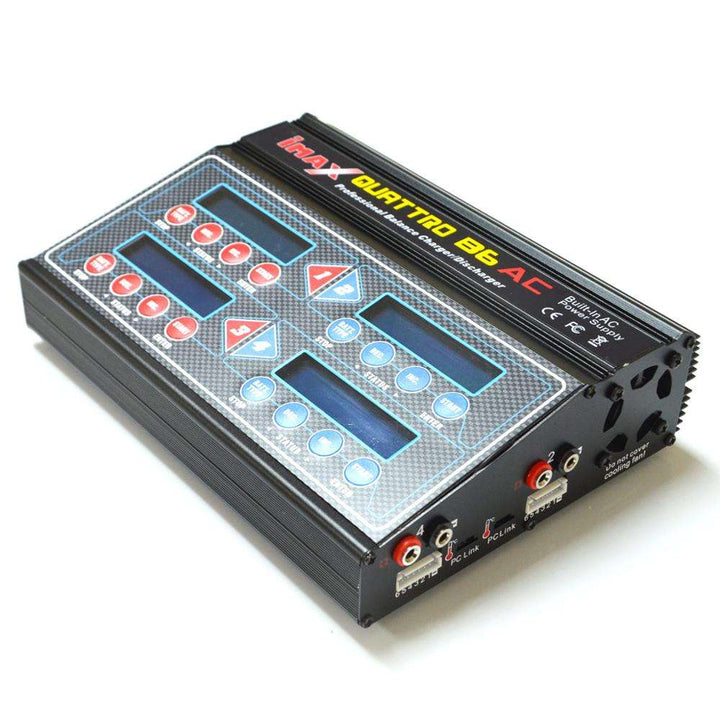

Aluminum case with fan, high efficiency cooling
Multi working modes:Charge/Fast Charge/Balance Charger/Discharge/Storage/Cycle Charge
Battery Capacity/Voltage Displays
Individual cell voltage balancer
Battery Internal Resistance Checking
Terminal Voltage Control,end voltage adjustable
Cycle time adjustable
Data Storage and Loading
Digital DC Power
Audable Warning Signals
Built In Safety Features
Specification:
Input Voltage AC:110V-240V / DC:11-18V
Charging Power: Max.80W x 4 (Total 320W))
Discharge Power:Max 5W x 4 (Total 20W)
Charging Current: 0.1 - 6.0A
Discharging Current: 0.1-2.0A
Compatible Batteies: Li-Po, Li-Hv,Li-Fe,Li-ion, Ni-CD, Ni-MH PB, Smart Battery
Available Number of Cells: Li-Po/Li-Hv/Li-Fe/Li-ion:1- 6cells
Ni-MH/Ni-CD:1-15 cells
PB:1-10 cells 2-20V
Smart Battery I,II,III
Dimension:23*17*6.5cm
Net Weight:1.38kg
Package weight: 2.7kg
| Socket Standard |
EU, AE, US, UK |
|---|
