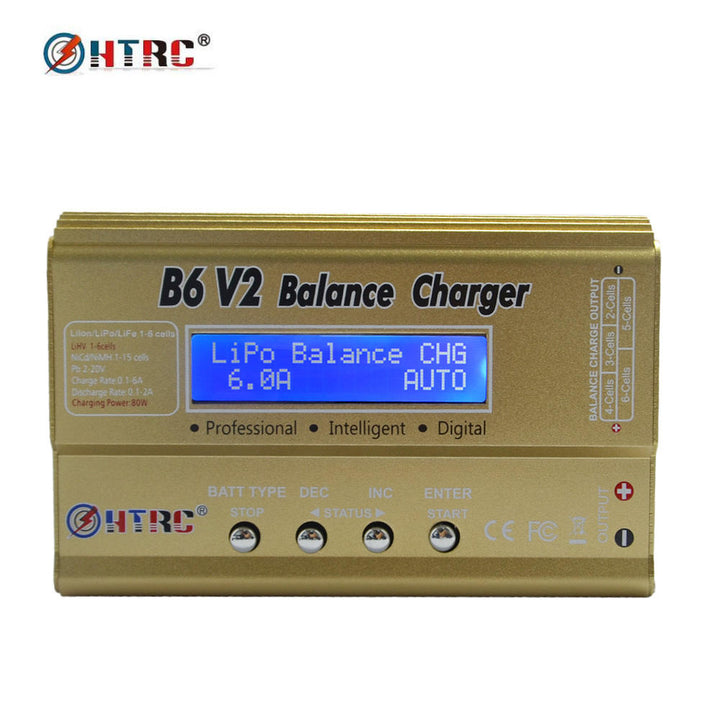

HTRC B6 V2 LiPo Battery Charger 80W 6A Digital RC Balance Charger Battery for NiMH/NiCD/Li-Fe Packs w/LCD Display RC Hobby
Description
HTRC B6 V2 80W Professional Digital RC Toy Lipo Battery Balance Charger/Discharger for LiHV LiPo LiIon LiFe NiCd NiMH PB Battery
HTRC B6 V2 is an upgrade version of imax B6 which developed by HTRC. It is a digital intelligent multi-functional charger which support LiPo/LiIon/LiFe/NiCd/NiMH PB batteries,high power battery LiHV and smart battery I,II,III. Max charger power 80W,discharger power 10W, max charge current 6A discharger current 2A with high charging efficiency.
Overview

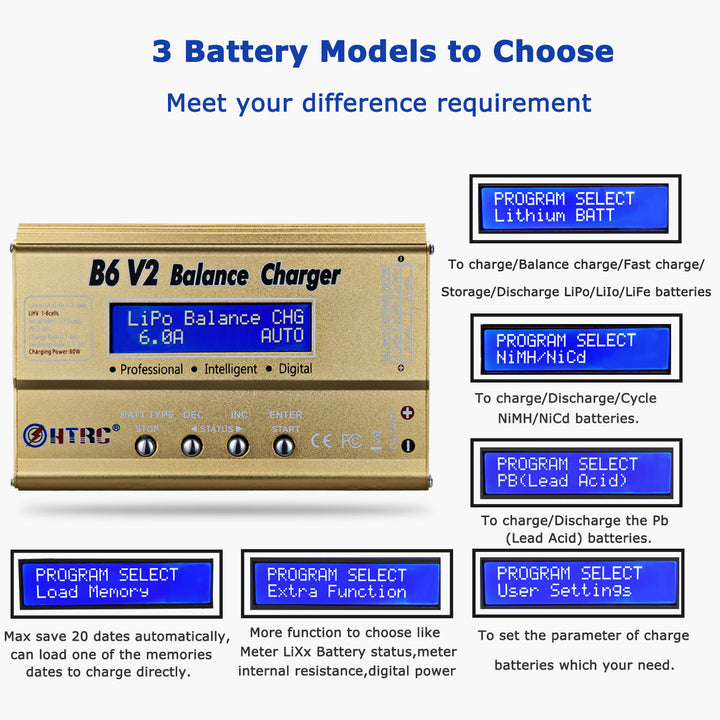

>Practical for variety of batteries: 1-6s Lilon/LiPo/LiFe/LiHV,1-15cell Nicd/NiMh, 2-20V PB battery. Smart Battery I,II,III.
>Multi-Function:Charge, Balancer, Discharge,Terminal Voltage Control,Lithium Battery capacity & voltage checking,Battery Internal Resistance checking,Data storage and loading, Digital Power.
>Maximum Safety:Low Input Voltage setting,Capacity limit, Processing Time limit,Temperature Threshold,Delta-Peak Sensitivity
>2 in 1 Charging cable with XT60 Plug and Deans Plug which suit for most batteries charging
Features:
-Microprocessor controlled Delta-peak sensitivity.

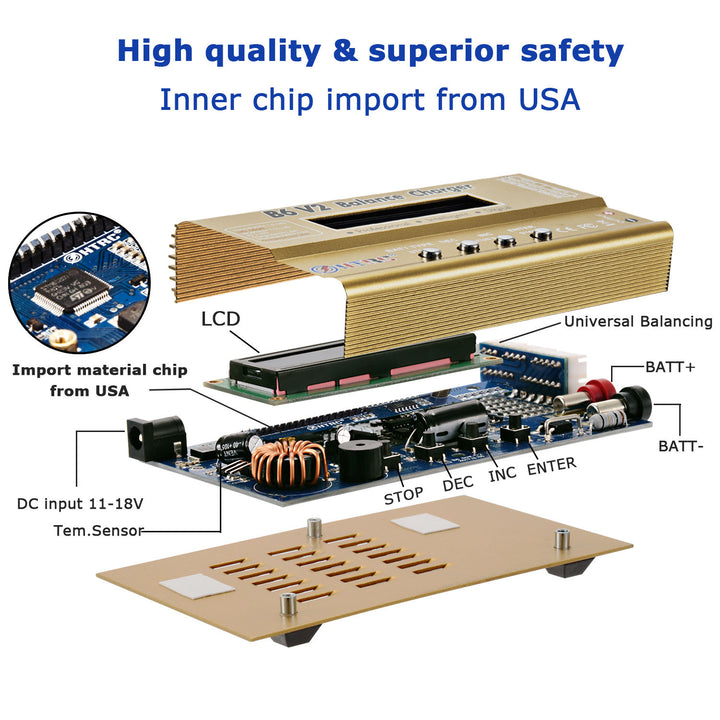

-High-Power and high-performance circuit.
-Automatically identify the cells counts of lithium battery section.
-Check lithium battery internal resistance.Let you know when a cell is going bad.
-Support LiHV battery
-Support smart battery I,II,III.(need optional smart battery charging cable)
-Maximum Safety: Low Input Voltage setting,Delta-peak sensitivity. Capacity limit, processing time limit, Temperature Threshold.
-Terminal Voltage Control.
-Individual cell balancing, cell voltage Monitoring
-Data storage and loading (Store up to 20 packs in memory)
-Battery break in and cycling.
-Digital Power

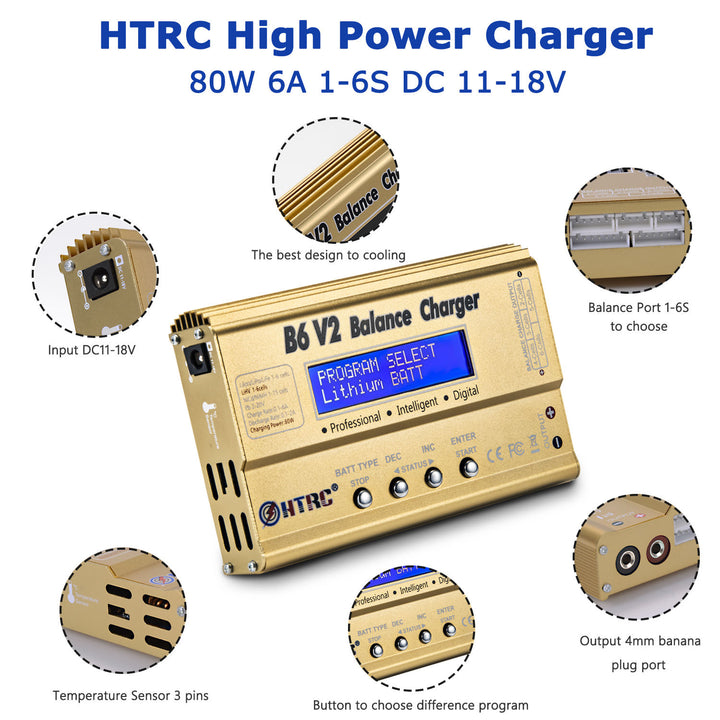

Specification:
* Operating voltage range: DC11.0-18.0 Volt/ AC to DC adapter (DC11.0-18.0V/ 6A)
* Max.charge power 80W
* Max.discharge power 10W
* Charge Current Range: 0.1-6.0A
* Discharge current range:0.1-2.0A
* Current drain for balancing: 400mAH/cell
* LiIon/LiPo/LiFe/ LiHV cells:1-6 cells
* NiCd/NiMH cells: 1-15cells
* Pb battery voltage: 2~20v
* Smart Battery: I II III.
* Net Weight: 220g
* Dimensions: 135x86x27mm

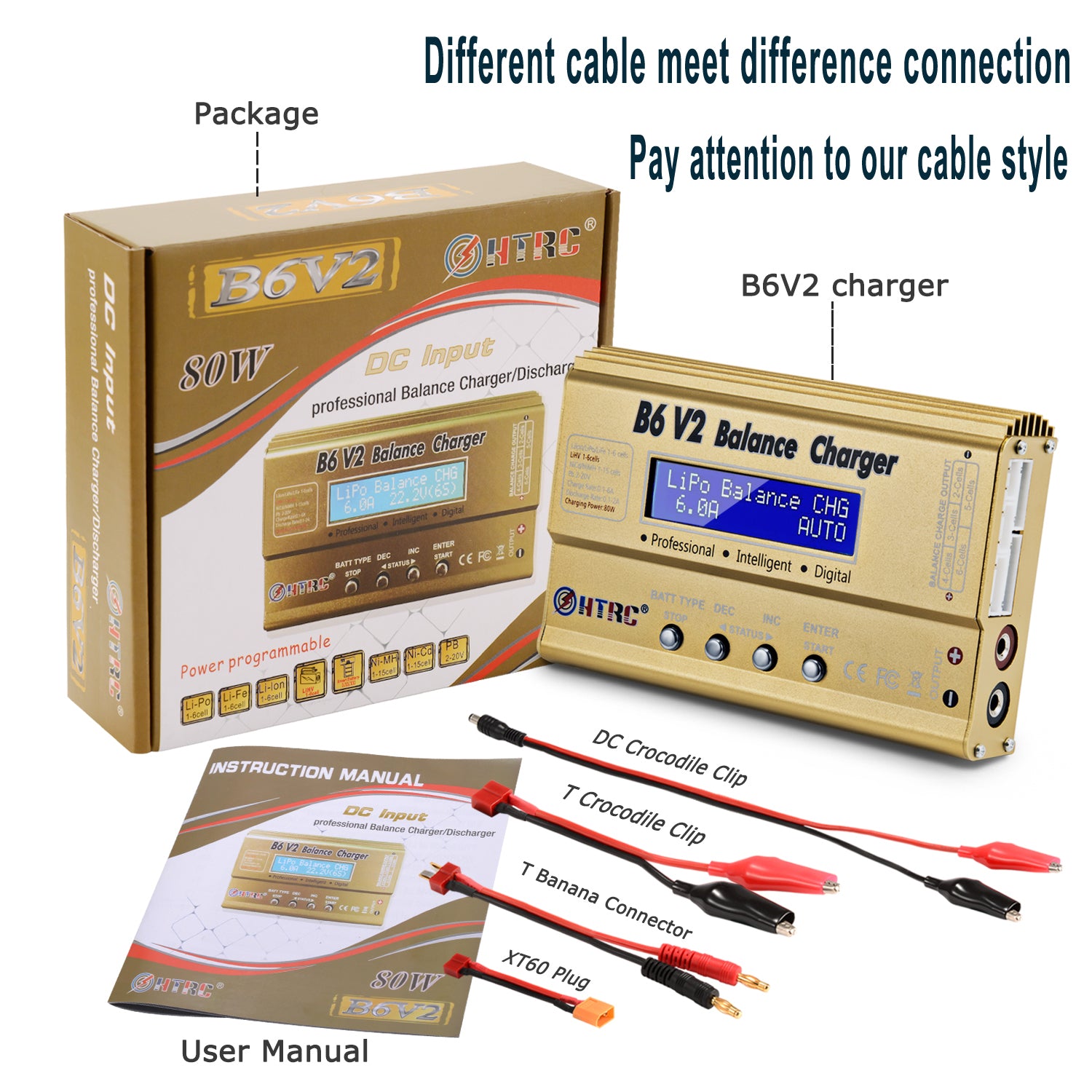

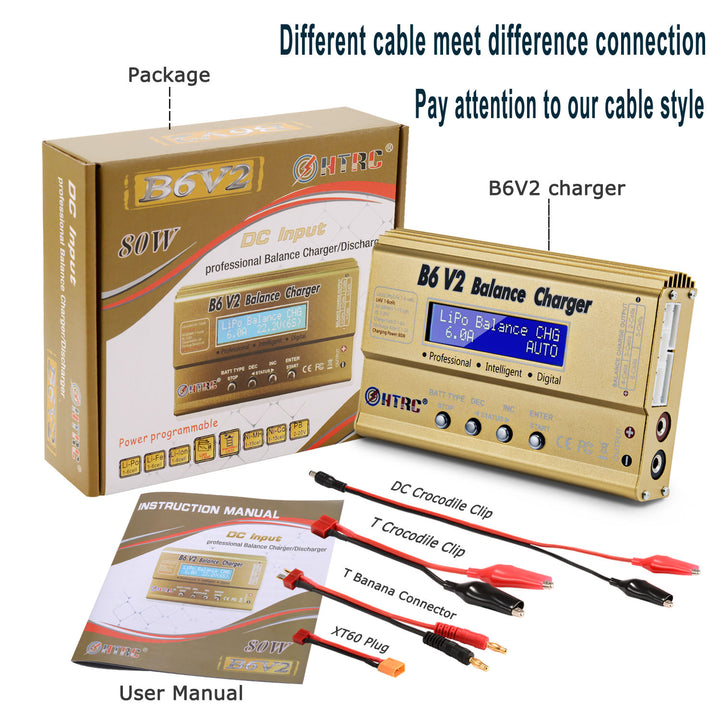

Package include:
1 x HTRC B6 V2 charger
1 x Charging cable with XT60 and T-plug
1 x Universal crocodile clip
1 x PB charger cable
1 x Manual
Additional Information
| Socket Standard |
US, UK, AU, EU |
|---|
HTRC B6 V2 LiPo Battery Charger 80W 6A Digital RC Balance Charger Battery for NiMH/NiCD/Li-Fe Packs w/LCD Display RC Hobby
$16.00
