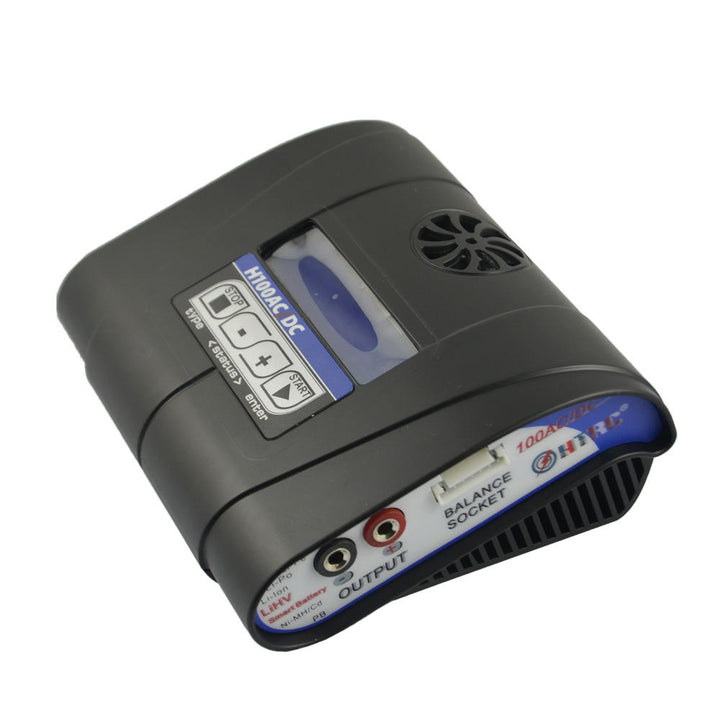

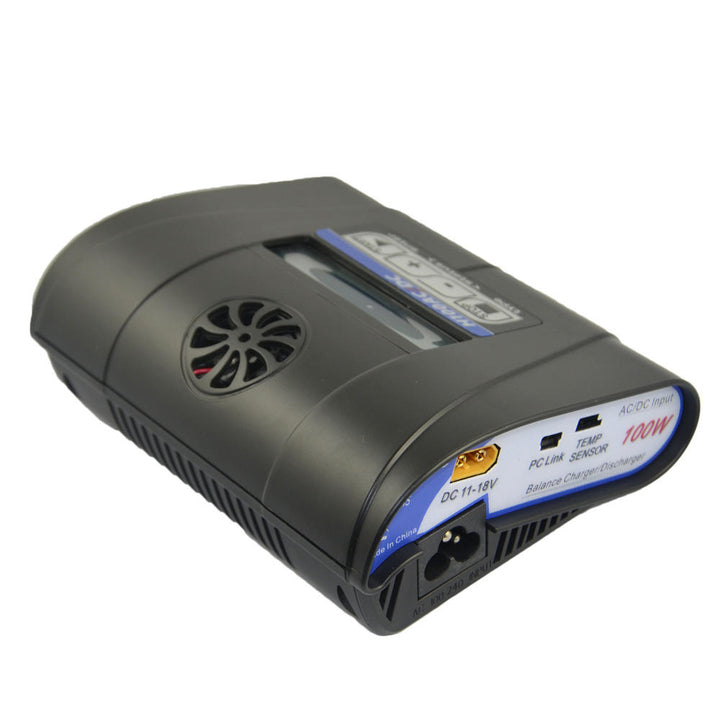

HTRC H100 AC/DC Multi-function RC Toy Lipo Battery Balance Charger/Discharger 100W 10A for Lipo Lilon LiFe Ni-MH Ni-CD Battery

HTRC H100 AC/DC is a digital intelligent multi-functional charger which support LiPo/LiIon/LiFe/NiCd/NiMH PB batteries,high power battery LiHV and smart battery I,II,III. Max charger power 100W, max charge current 10A with high charging efficiency.

Features:

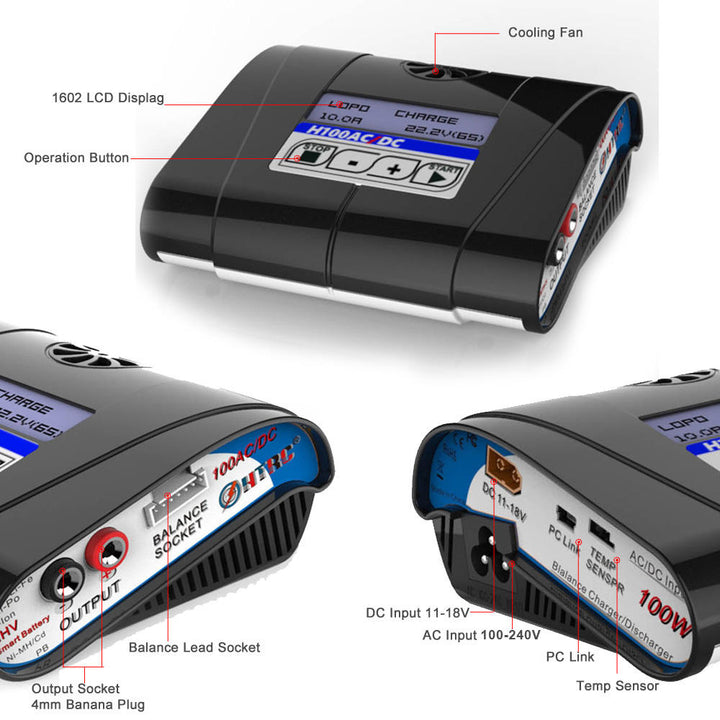

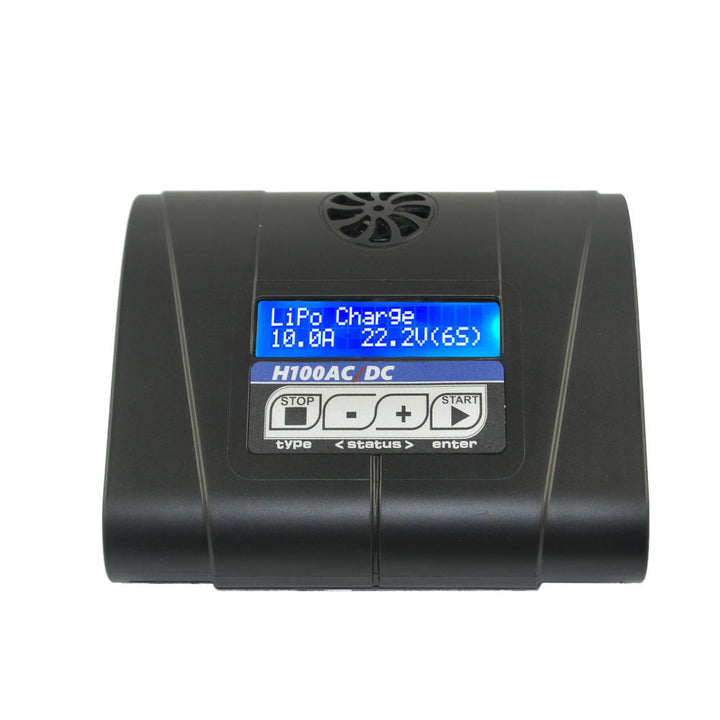

*16x2 LCD disply for easy reading.
*High-powered and high-performance circuit.
*Full plastic shell,light and convenient.
*Practical for variety of batteries.LiPo LiFe Lilon NiCd NiMh Pb,and high power battery LiHV.
*Automatic identification of Li-Po batteries cells counts
*Adjustable digital DC Power.
*Built in smart cooling fan for easy heat dissipation.
*Built-In PFC AC adapter high efficiency.comes with power switch.
*Multiple charging modes.
-Lipo/Lilo/LiFe/LiHv: balance charge, charge,fast charge, storage, discharge.
-NiMH/NiCd: Charge, Discharge, Cycle.
-PB: Charge,Discharge,Trickle.
*Multi-extra function:
-Battery Meter:Display lithium battery cell counts, total voltage, battery capacity percentage,each cell's voltage. (does not support 1s battery)
-TVC(Terminal voltage control):The Charger allows user to set the charge/discharge end voltage.
-Lithium Battery internal Resistance Check: can display each cell's resistance.(does not support 1s battery)
-Balancer: individual-cell-voltage balancing,cell voltage Monitoring
-Smart battery:Smart battery I,II,III,(Need optional DJI Charging cable)
*Data storage and loading
*Battery break in and cycling.
*Maximum Safety:Automatic charge current limit,Delta-peak sensitivity, capacity limit, processing time limit,temperature threshold.
*Firmware update.

Specification:
Input:AC 100-240V / DC 11-18V
Charger power:100W
Discharger power:10W
Charge Current:0.1-10A
Discharge Current:0.1-2A
Current Drain of Balancing:400mA/Cell
Data Power:5-25V.0.1-10A
Digital DC Power: 5-25V, 0.1-10A.
Lipo/LiIon/Life:1-6Cell
NiMH,NiCD:1-15Cells
PB Battery:2-20V
Smart Battery: I/II/III
Dimension:L12.2*W13.9*H5.3cm
Net Weight:0.295kg
Gross weight:0.8kg

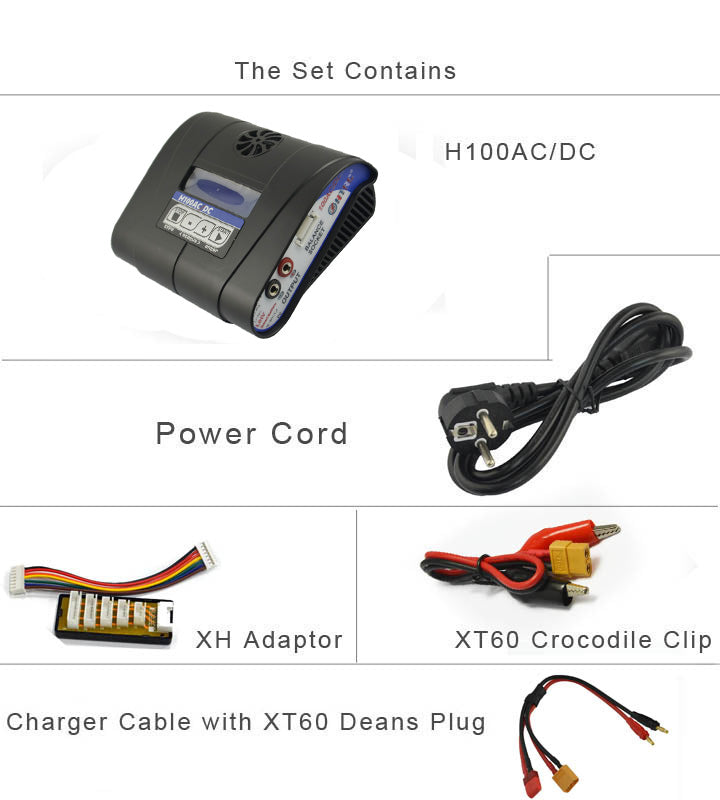

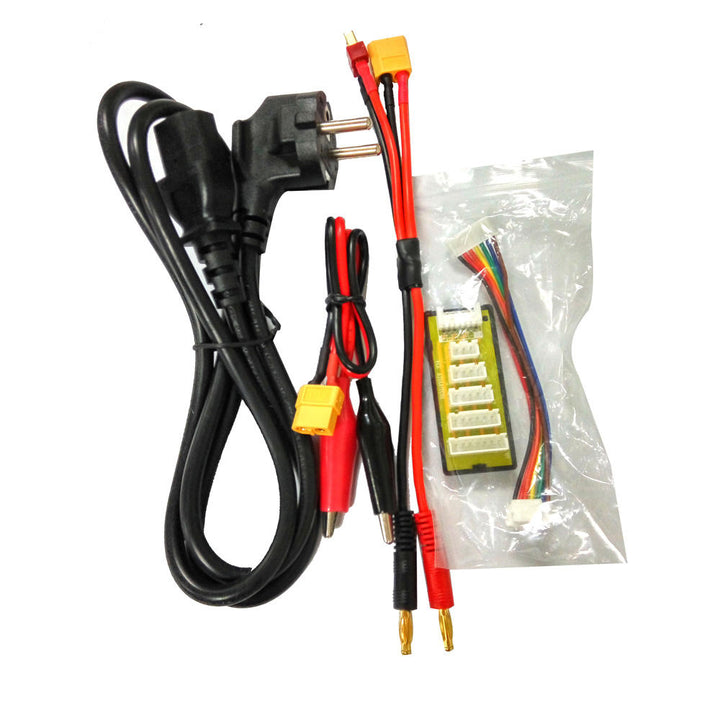

Package list:
1 x H100 Main unit.
1 x AC Cord (US EU UK AU Optinal)
1 x DC Cord
1 x Charing Cable
1 x Charging Board
1 x User's Manual
