HTRC HT100 AC/DC car battery chargerBattery Balance Charger 100W 10A 3.2" Color LCD Touch Screen for Lion/LiPo/LiFe/LiHv Battery

HTRC HT100 AC/DC Smart RC Toy Lipo Battery Balance Charger 100W 10A 3.2" Color LCD Touch Screen for Lion/LiPo/LiFe/LiHv Battery

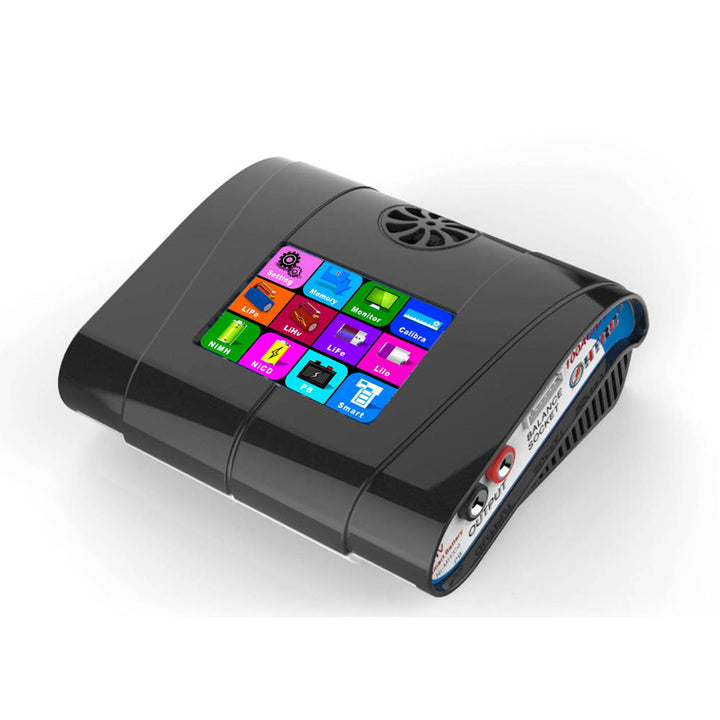

HTRC HT100 AC/DC is a new design Color LCD Touch Screen RC Charger with full plastic case and new operating system develpoed by HuiTuo. AC /DC Dual Input, Small size, light weight, easy to carry and easy to use.

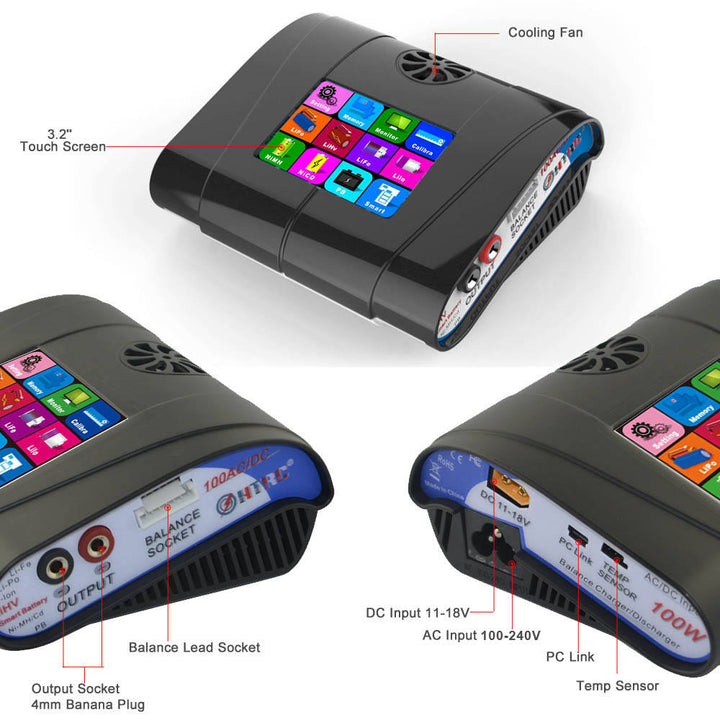

• Full Plastic Shell,Light and handy,Solid and Well-Made,Built in Cooling Fan for Easy Heat Dissipation,3.2 inch Color LCD Display Touch Screen,Easy reading and operation.
• AC/DC Dual Input,High Power Circuit,Max Charing Power 100W, Max Charging current 10A.
• Practical for variety of batteries charging: 1-6s Lilon/LiPo/LiFe/LiHV,1-15cell Nicd/NiMh, 2-20V PB battery. Smart Battery I,II,III.
• Multi-Function:Balance charge, discharge,Terminal Voltage Control,Lithium Battery capacity & voltage checking,Battery Internal Resistance checking, individual cell voltage calibration,Data storage and loading,Charging status graphic photo display, Digital DC Power supply.
• Users could set the Charging Current Limit, Capacity Limit, Temperature Threshold and Processing Time Limit which makes the charger safe to use.

Features:
-3.2 inich Color LCD Touch screen.
-Full plastic shell, light and convenient.
-Built in cool fan
-Setting: Buzzer volume, balance speed, Max charging power,
-Security setting : Low Input voltage,Max Capacity, Safety time, Temprature cut-off.
-High power circuit,supports LiHV Charging.
-Supports DJI Smart Battery Charging (Need optional DJI Charging cable)
-Automatic identification of Li-Po batteries cells counts
-Battery Capacity & Voltage Checking,
-Battery Internal Resistance Checking.
-Battery Balance
-Individual cell voltage calibration
-(TVC)Terminal Voltage Control.User is able to adjust the end charge voltage per cell,
and set a voltage which is kinder to the batteries as his will.
-Digital DC Power:5-25V.0.1-10A
-Data storage and loading.6 Memories Data
-Graphic photo display of charging stauts.
-Lipo/Lilo/LiFe/LiHv 4 models : balance charge, charge, storage, discharge.
-NiMH/NiCd 3 models: Charge, Discharge, Cycle.
-PB 3 models: Charge, Discharge,Trickle.
-Smart battery 4 model:Smart battery I,II,III,and user set.
-Support firmware upgrade.

Specification:

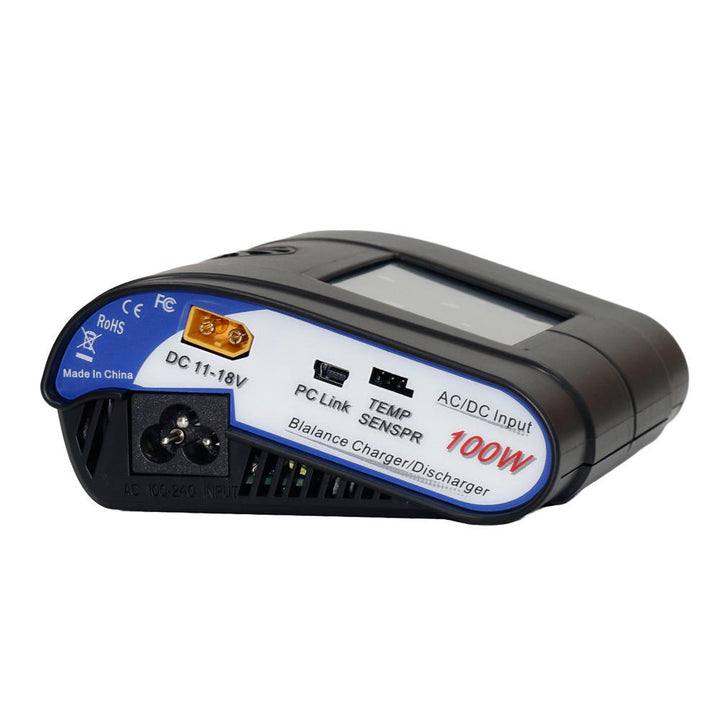

Input: AC 110-240 / DC 11-18V
Charge Power: 100W
Discharge Power: 10W
Charge Current: 0.1-10A
Discharge Current: 0.1-2A
Current Drain of Balancing: 350mA/Cell
Data Power: 5-25V.0.1-10A
Lipo/LiIon/Life/LiHV: 1-6Cell
NiMH,NiCD: 1-15Cells
PB Battery: 2-20V
Smart Battery:I/II/III

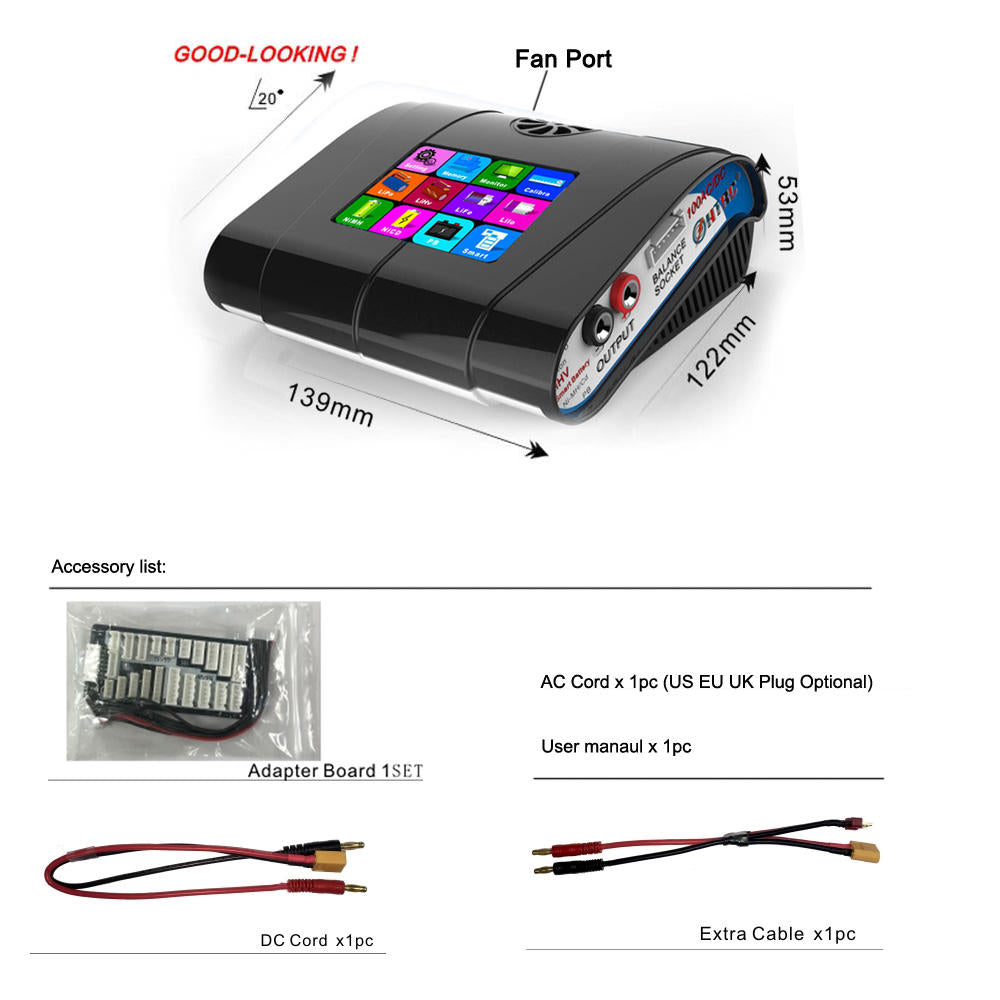

Dimension: 12.2x12.9x5.3cm
Net Weight:0.3kg

Package list:
1 x HT100 Main unit.
1 x AC Cord (US EU UK AU Optional)
1 x DC Cord
1 x Charing Cable
1 x Charging Board
1 x User's Manual
