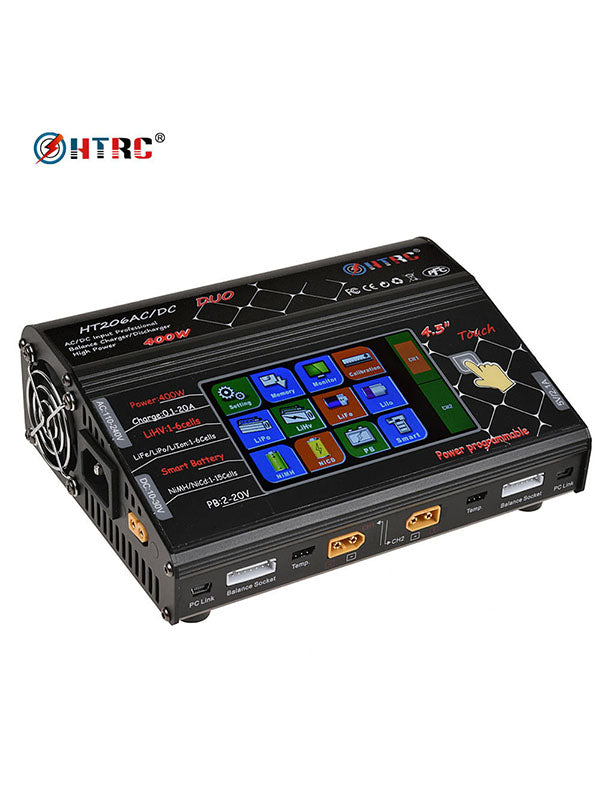

HTRC HT206 AC/DC 4.3"Color Touch Scree 200W*2 20A*2 Dual Port RC Lilon/LiPo/LiFe/LiHV Battery Charger / Discharger

HTRC HT206 DUO is a twin-channel charger with two independent output which can charge two different kinds of batteries simultaneously.

• Full Aluminium Alloy Appearance Design,Solid & Well-made.Built-in Cooling fan for easy heat dissipation. 4.3 inch Color LCD Disply Touch Screen, Easy Reading and Operation
• AC/DC Dual Input, Two Independent Output Which can Charge Two Different kinds of Batteries Simultaneously. Each Output Port Circut Power can Reach 200W, High Power Circuit,High Charging Efficiency.
• Practical for variety of batteries.1-6s Lilon/LiPo/LiFe/LiHV,1-15cell Nicd/NiMh, 2-20V PB battery. Smart Battery I,II,III.
• Multi-function: Balance Charge, Discharge,Terminal Voltage Control,Lithium Battery Capacity & Voltage Checking, Battery Internal Resistance Checking, Individual Cell Voltage Calibration,Data Storage and Loading,Charging Status Graphic Photo Display, Digital DC Power Supply 5-27V ,0.1-20A, USB DC Output 5V 2.1A,
• Users Could Set The Charging Current Limit, Capacity Limit, Temperature Threshold and Processing Time Limit Which Makes the Charger Safe to Use.

Features:

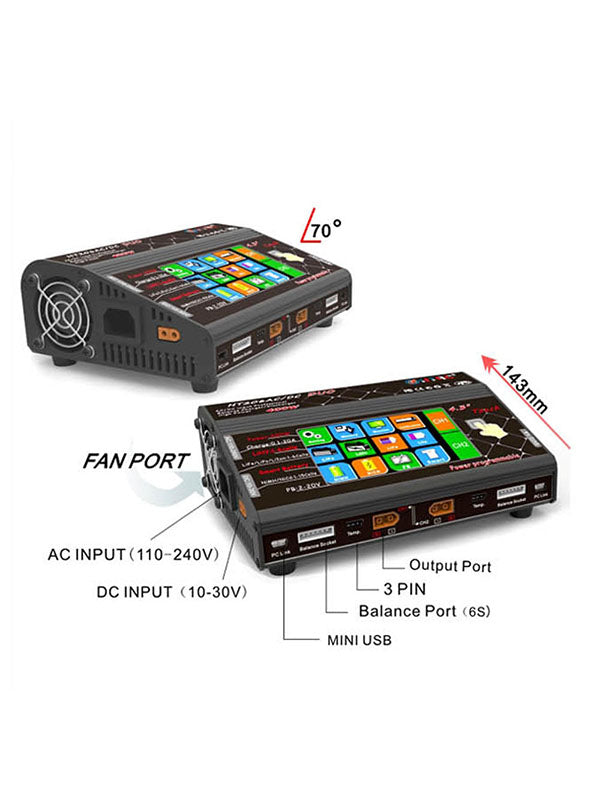

-AC/DC Dual Input.

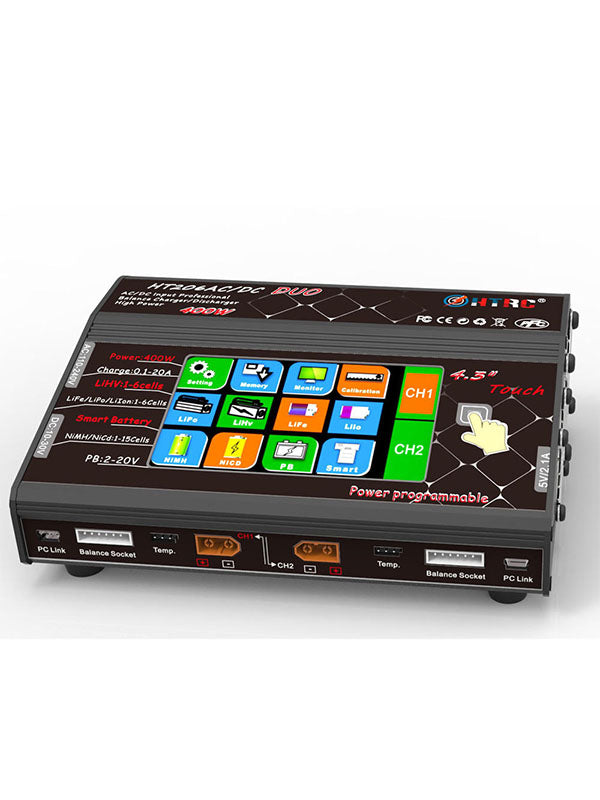

-4.3" Color LCD touch screen display for easy operation and convenient to use.
-Full Aluminium beautiful Appearance Design, Built in cool fan, Good Cooling System.
-With rubber pads, prevent sliding and the air can circulate.
-Two independent Port which can charge two different kinds of batteries simultaneously.
each port max charging power up to 200W, max charging current up to 20A.
-Automatic identification of Li-Po batteries cells.
-Support LIHV High Power Battery and Smart Battery.
-Battery management check battery capacity, voltage and balancer.
-Memory function save up to 8 operation data.
-5V 2.1A USB DC power supply output.
-Built-in PFC can improve the energy consumption from mainpower grid evidently,
-Soft switching is also introduced can reduce radiation interference
-Support Firmware update.

Specifications:

Input Voltage:AC110-240V/DC10-30V
Charger Circuit Power:200W*2
Discharger Circuit:25W*2
Charger current range:0.1-20A*2
Discharge Current Range: 0.1-5A*2
Digital DC power:5-27V ,0.1-20A
Lilon/LiPo/LiFe/LiHV:1-6cell*2
Nicd/NiMh:1-15cell*2
Current Drian for Balancing Port:500mA/cell
PB: 2-20V*2
Smart battery: I/II/III*2
Charger plug: EU, US, UK plug optional (send plug according to buyer's location)

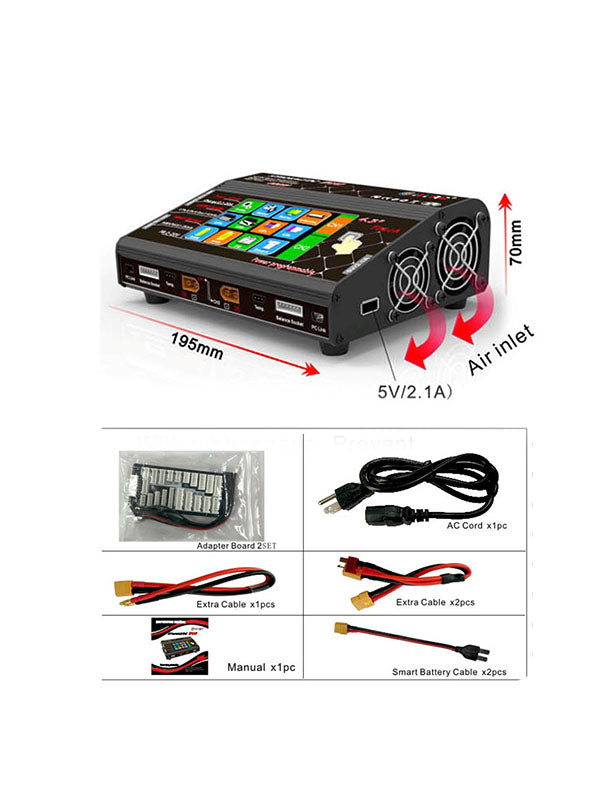

Demension:L19.5*W14.3*H7cm
Net Weight:1.072Kg

Screen Display:

Setting: general settings such as Buzzer volume, Low input voltage, balance speed, Max charging power. Besides,
user can set some cut off value according to your requirments for each channel, makeing sure a safety charging.
Memory: save up to 8 operation data.
Monitor: checking battey capacity ,voltage, Internal Resistance, balancer.
Calibration: calibrate battery cell voltage.
Working interface:
The working interface shows all setting data of charging.
and the charge current and voltage will be displayed by graphic photo.

Different battery has different model:
In Lipo/Lilo/LiFe/LiHv charging interface , there are 4 model : storage, charge, bal-charge, discharge.
In NiMH/NiCd charging interface, there are 3 model: Cycle charge discharge
In PB charging interface , there are 3 model : trickle charger discharge.
In smart battery charging interface, there are 4 model: Smart battery I, II, III , and digital power.
Digital DC power supply voltage range : 5-27V, current range,0.1-20A.
