HTRC HT700 DUO AC/DC 350W*2 20A*2 Dual Port Vertical RC Toy Lipo Battery Balance Charger Discharger For 1-8s Lilon/LiPo Battery

HTRC HT700 DUO AC/DC 350W*2 20A*2 Dual Port Vertical RC Toy Lipo Battery Balance Charger Discharger For 1-8s Lilon/LiPo Battery

AC/DC Dual Input, Large Color LCD Touch Screen, Beautiful outlook and easy operation.

It is a twin-channel charger with two independent output which can charge two different kinds of batteries simultaneously.

Users could set the terminal voltage,Charging Current Limit, Capacity Limit, Temperature Threshold and Processing.
Time Limit which makes the charger safe to use.

What's more, Users could use it as Lithium Battery Meter for capacity / voltage checking and Battery Internal Resistance Meter.

It support Digital DC power output with adjustable power 5-35V and current: 0.1-20A.

Besides, there are two 5v 2.0A USB DC Output Port which can be used as power supply to cell phone or electronic product.

Features:

- AC/DC Dual Input,Twin-channel with two Independent output.
- 4.3" Large LCD Color Touch Screen,Easy operation and convenient to use.

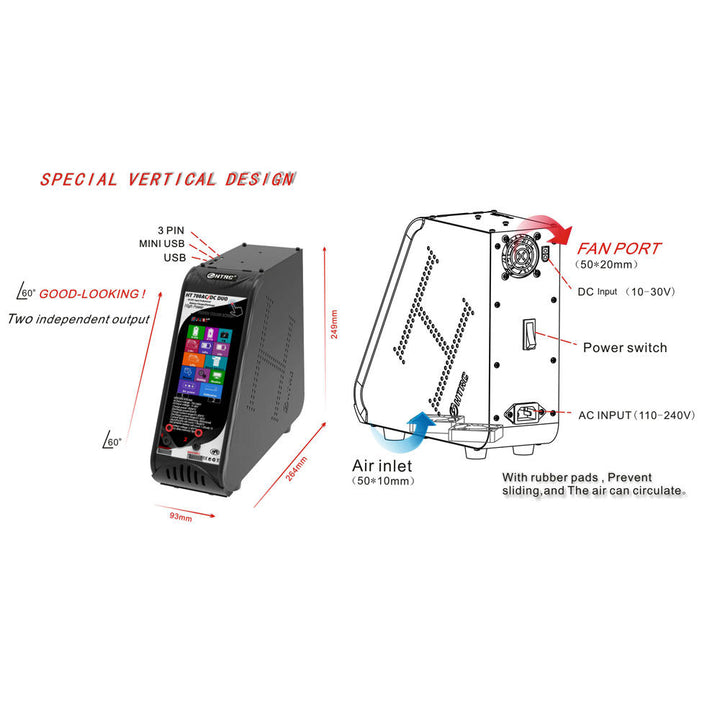

- Special Vertical Design,breaking the traditional appearance,good looking.
- Aluminium body easy cooling,Built in cool fan,with rubber pads, prevent sliding and the air can
circulate.
- Practical for variety of batteries.Support New LIHV High Power Battery and Smart Battery.
- Automatic identification of Li-Po batteries cells.
- Battery Management: Capacity Checking,Internal Resistance Meter,Terminal Voltage Control, voltage
calibration,10 Memories Data.
- Support Digital DC power output with adjustable power 5-35V and current: 0.1-20A.
- Support USB DC Output 5.0V 2.0A
- Built-in PFC can improve the energy consumption from mainpower grid evidently.
- Soft switching is also introduced can reduce radiation interference.

Setting: general settings such as Buzzer volume, Low input voltage, balance speed, Max charging power.
Besides, user can set some cut off value according to your requirments for each channel, makeing sure
safety charging .

Memory: save up to 10 operation data.

Monitor: checking battey capacity ,voltage, Internal Resistance, balancer.

Calibration: calibrate battery cell voltage.

Working interface:
The working interface shows all setting data of charging.
and the charge current and voltage will be displayed by graphic photo.

Different battery has different model:
In Lipo/Lilo/LiFe/LiHv charging interface , there are 4 model :balance-charge, charge,storage,discharge.
In NiMH/NiCd charging interface, there are 3 model:discharge,Cycle,Charge
In PB charging interface , there are 3 model : Charge,Trickle,Discharge.
In smart battery charging interface, there are 4 model: Smart battery I,II,III,and user set.
