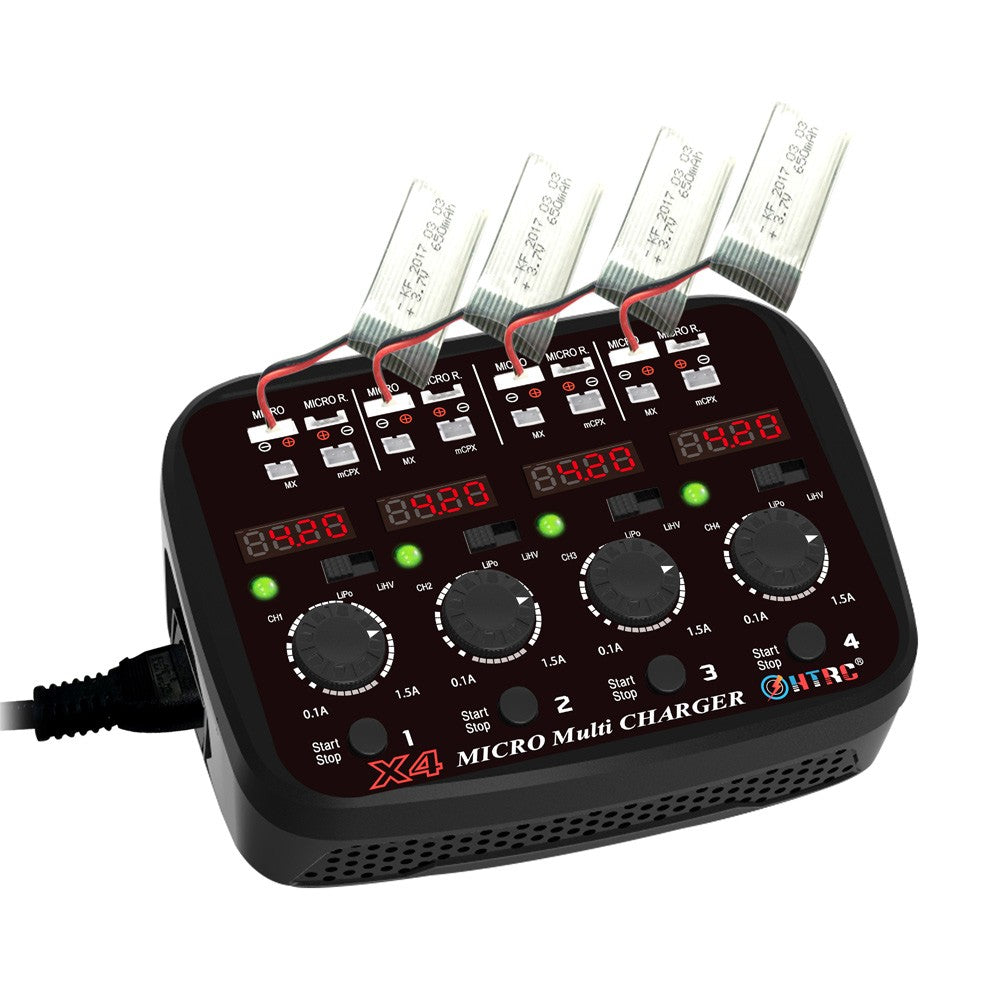

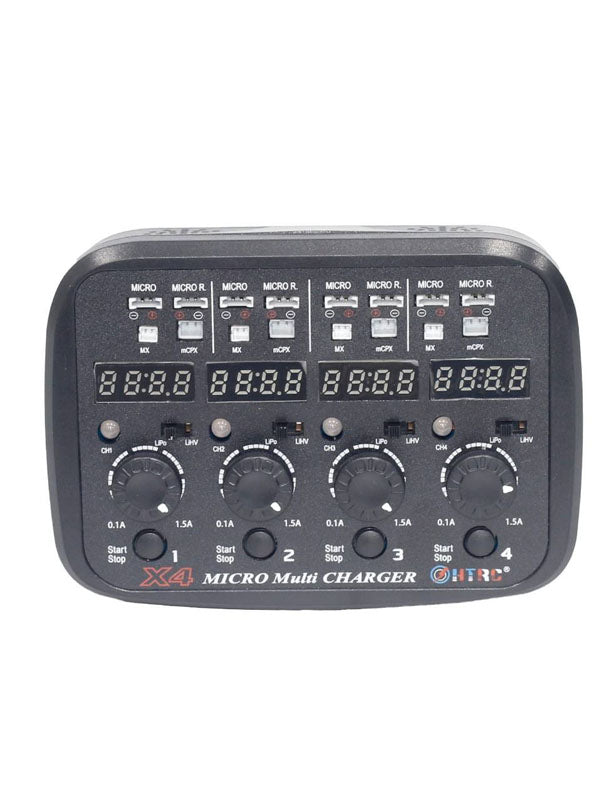

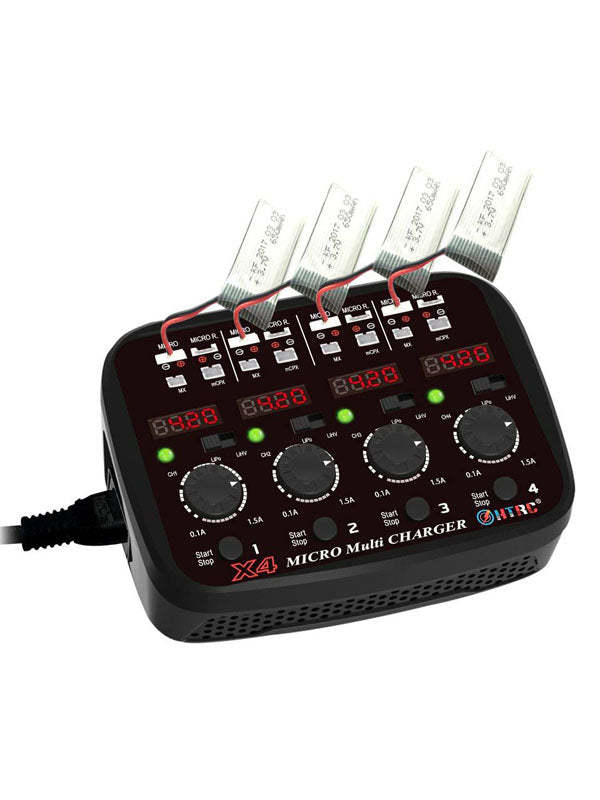

HTRC X4 AC DC 4x1s Quattro 100-240V 24W 1.5A Lipo/Lihv Micro Lipo Battery Balance Charger LED And Audible Sound Indicate

Quick Details
Style:Radio Control Toy
Type:Airplane
Power:Battery, 4*6W
Material:Plastic
Plastic Type:ABS
Scale:1:10
Radio Control Style:RC Hobby
Place of Origin:Guangdong, China (Mainland)
Brand Name:HTRC
Model Number:X4
Color:Black
lipo:1*4S
Power cord:AU/EU/US/UK

HTRC X4 1s Micro Battery Charger employs the circuit that features four totally independent but identical power outputs which are powered 6W each. It is designed for charging single cell LiPo. Insert the lead to the right connector in each port, the charger will charge 4 batteries at the same time. And the charging current can be adjusted from 0.1-1.5A by dial, the charging capacity and cell voltage can be displayed in each 4-digital LED indicators.

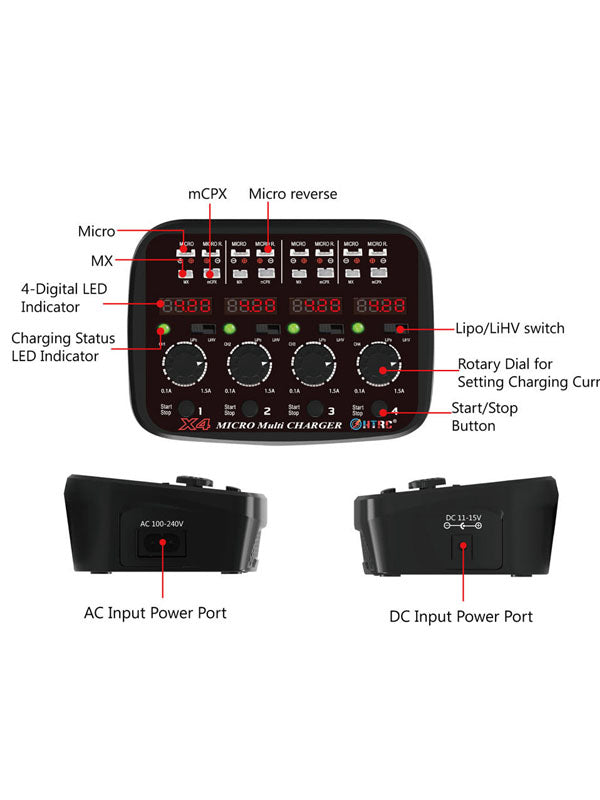

Features:
-Four independent ports can be used at the same time.
-Four different kinds of battery connectors in each port.
-Four independent functioning charging circuits.
-Four independent 4-digital LED displays current and capacity.
-LED and audible sound indicate charging status.
-Adjustable charging current from 0.1-1A.

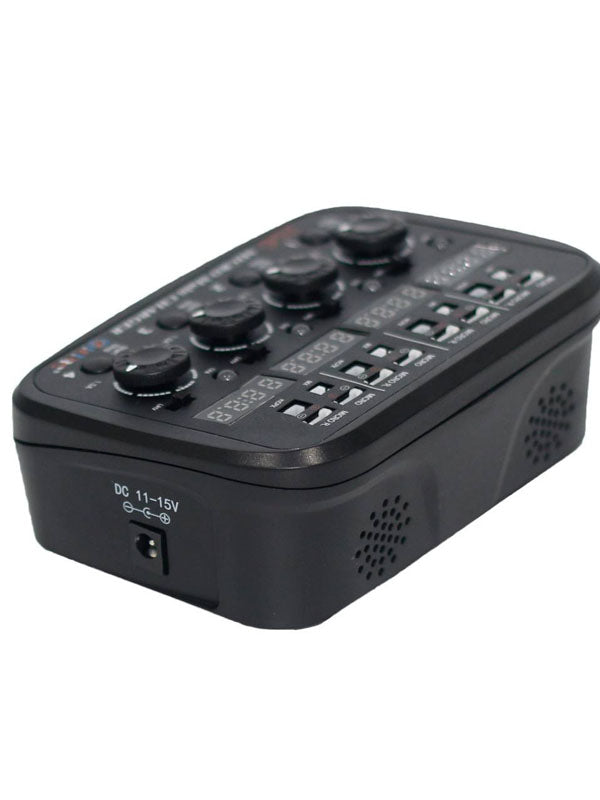

-AC/DC dual power input.
-Efficient ventilation.
-Maximum protection: short circuit protection; over current protection; battery reverse polarity protection and DC input voltage protection.

Specifications:
Item model:HT-0085
AC Input: 100-240V (35-45W)60HZ
DC Input: 11-15V( 30-35W)
Circuit power: 4X6W ±10%
Charge current range: 0.1-1.5A ±10%
Battery type: 4X1 cell LiPo /Lihv
Battery connector type: Micro / Micro Reserve / MX / mCPX
Weight: 280g
Gross weight:425g
Size: 132 * 100 * 50mm
Package size: 15.5 * 15 * 5.2cm

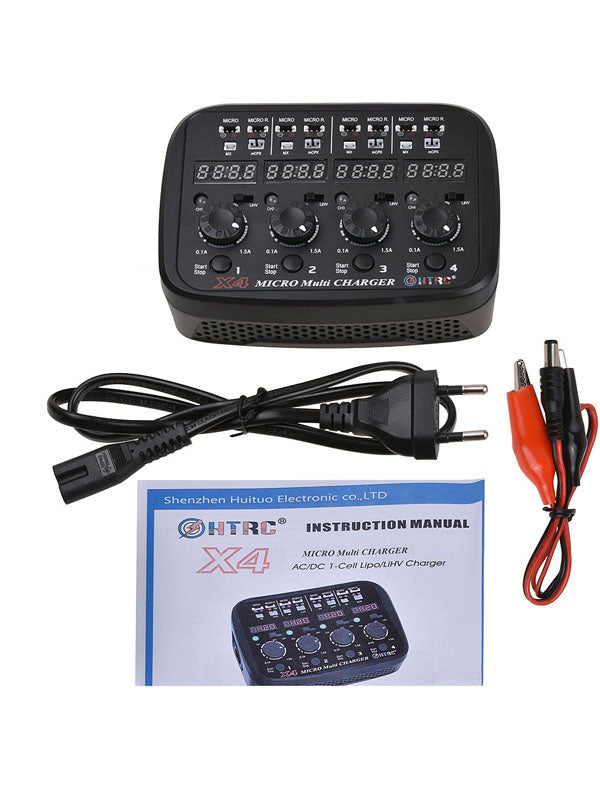

Package list:
1 * HTRC x4 Micro charger
1 * AC power cable
1 * user manual
