LiPo Battery Charger 1-6S AC/DC Dual Power 80W 7A B6Mini V2 RC Balance Discharger for Li-ion Life NiCd NiMH LiHV PB Battery

Brand Name:HTRC
Model Number:B6 MINI V2

Use:Standard Battery
Type:Electric

Place of Origin:Guangdong, China (Mainland)
Port:2 x USB

Socket Standard:EU/AU/UK/US
Color:Blue
DC Input:11-18V
AC Input:100-240V
Charge Power:70W
Discharge Power:5W
Charge Current Range:0.1-7A
Discharge Curernt Range:0.1-2A
Lipo/Lion/LiFe/LiHV/Nimh/Nicd:1-6S
Net Weight:240g
Plug:UK AU EU US

Packaging & Delivery
Packaging Details:Gift box
Delivery Time:3-5days after payment arrived

Product Description

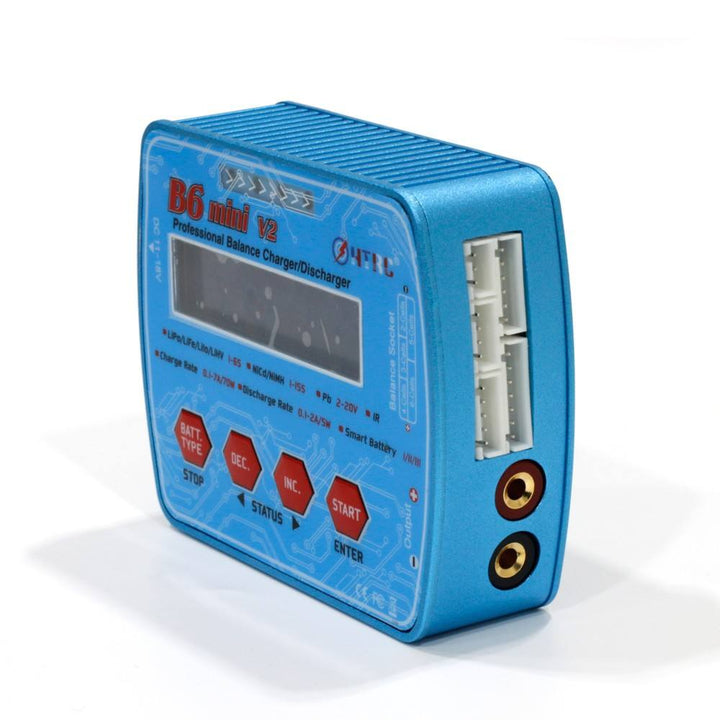

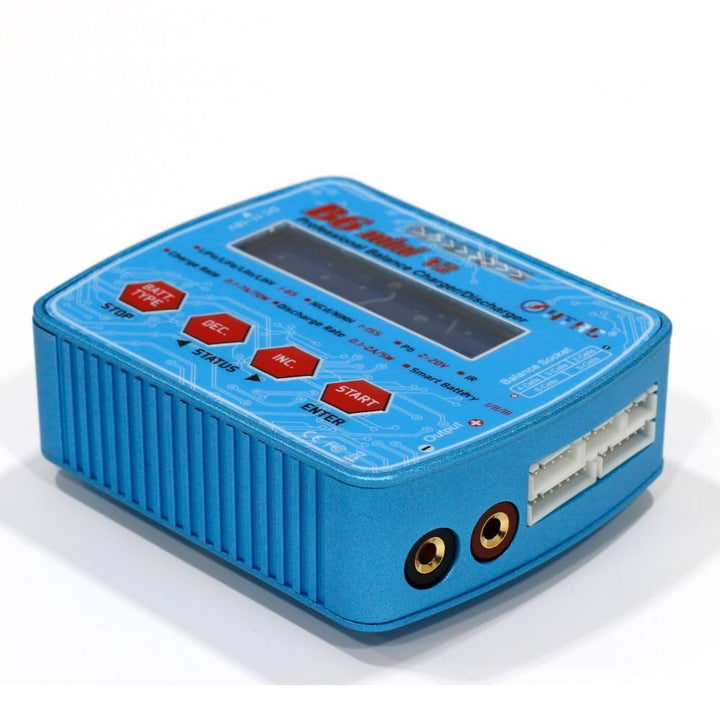

HTRC B6 Mini V2 is a new designed Lipo charger which developed by HuiTuo HTRC.

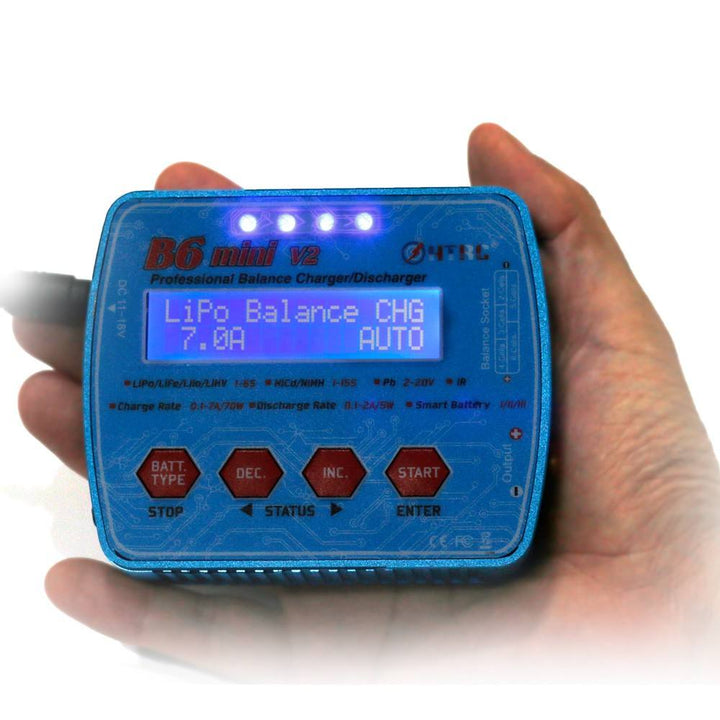

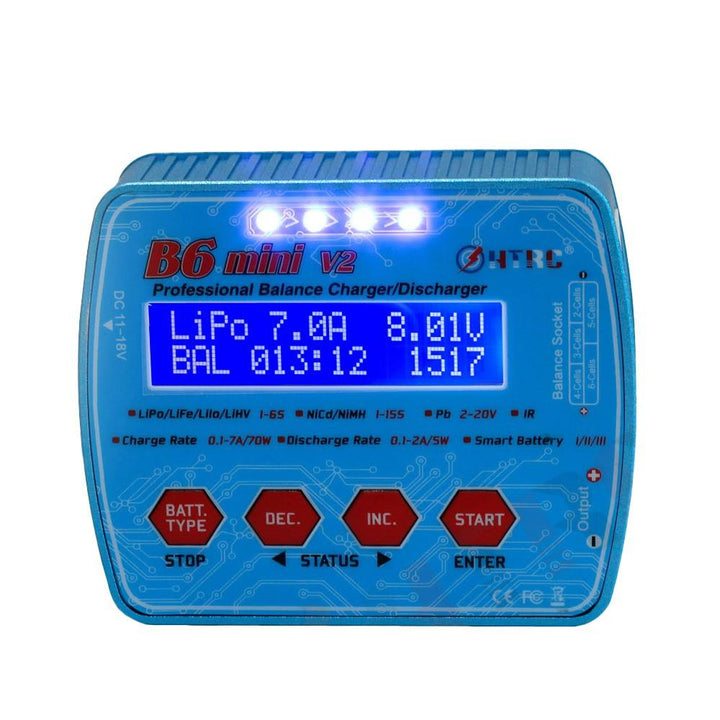

Elegant design,mini size pocket type.High quality, stable performance. comes with Marquee led indication. easy operation easy to use.
It is a digital intelligent multi-functional charger which support LiPo/LiIon/LiFe/NiCd/NiMH PB batteries,high power battery LiHV and smart battery I,II,III.
Max charger power 70W,discharger power 5W, max charge current 7A with high charging
efficiency.discharger current 2A
Note: AC Power adapter does not included. you need buy seperately.


Features:
♦ Elegant design,mini pocket type,comes with Marquee led indication.

♦ Microprocessor controlled Delta-peak sensitivity.

♦ Support Lihv battery which with can end of charger voltage of 4.35v.

♦ Automatically identify the cells counts of lithium battery section.

♦ Check lithium battery internal resistance.Let you know when a cell is going bad.

♦ Support smart battery I,II,III.(need optional smart battery charging cable)

♦ Maximum Safety: Low Input Voltage setting,Delta-peak sensitivity. Capacity limit, processing

time limit, Temperature Threshold.

♦ Terminal Voltage Control.User is able to adjust the end charge voltage per cell, and set a

voltage which is kinder to the batteries as his will.

♦ Individual cell balancing, cell voltage Monitoring

♦ Data storage and loading (Store up to 20 packs in memory)

♦ Battery break in and cycling.

♦ Digital Power

Work Mode:
-Lipo/Lilo/LiFe/LiHv: balance charge, charge,fast charger, storage, discharge.

-NiMH/NiCd: Charge, Discharge, Cycle.

-PB: Charge, Discharge.

Specification:
DC input 11-18V
Max charge power 70W
Max discharge power 5W
Charge current range 0.1-7A
Discharge current range 0.1-2.0A
Current drain for balancing 400mAH/cell
Lipo/lion/liFe/liHV cells 1-6S
NICD/NIMH cells 1-15S
PB battery voltage 2-20V
Smart battery I II III
Net weight 240g
Dimensions 14*13*5cm

Package list:
1 x HTRC B6 Mini V2
1 x DC Cord
1 x Charge cable Banana Plug to T-plug
