Map02 Aircraft Mapping camera 24.3MP SONY A5100 with E Mount lens 25mm for UAV Drone
Map-02 is a lite version mapping camera with APS-C Exmor CMOS sensor and 24.3 MP. It is a good option for higher-quality mapping and survey.

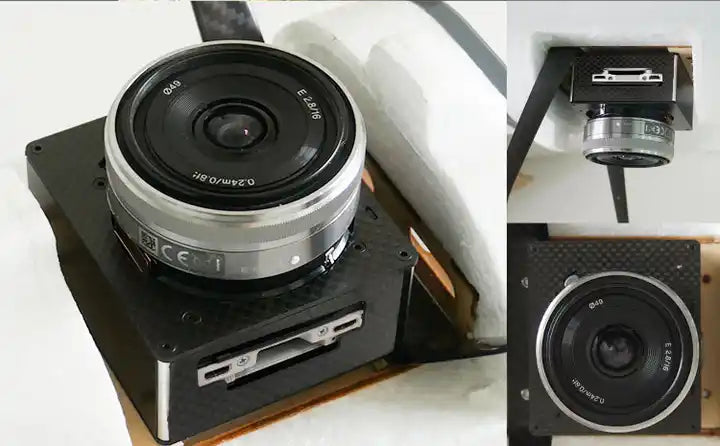

Map-02 is a very light and small mapping camera, which is only 112.5g. It is a good option for those customers who are looking for a small and light high-quality mapping camera. With the light weight and small size, Map-02 camera can be easily integrated into UAVs and airplanes to do mapping jobs. Shutter trigger of Map-02 camera is relay trigger, and also it could be connected with PPK system to ensure a centimeter-level accuracy of mapping and survey through a Hot Shoe signal. And it is an interchangeable-lens camera, so you can change the camera's lens according to your needs.
Whether for inspection projects or for photogrammetry, map-making, Map-02 camera is a good choice for companies wishing to offer high-quality surveys to clients.
Note: After power on, the shutter should be triggered twice to ensure that the camera can work normally, or it will crash after 10s.
Map-02 is an upgrade version of Map-01.
Your Purchase Includes:
|
Specification
|
||||||
|

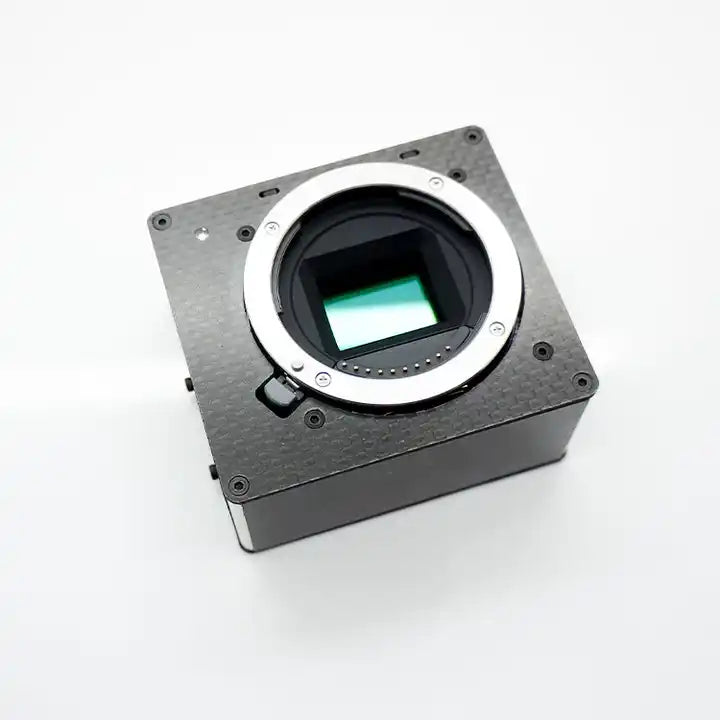

Sensor
|
Exmor APS HD CMOS sensor(23.5x15.6mm)
|
Image Format
|
JPEG,RAW,JPEG
|
|||
|
Number of Pixels(effective)
|
24.3MP
|
Storage Card Type
|
SD/SDHC/SDXC Card/MS
|
|||
|

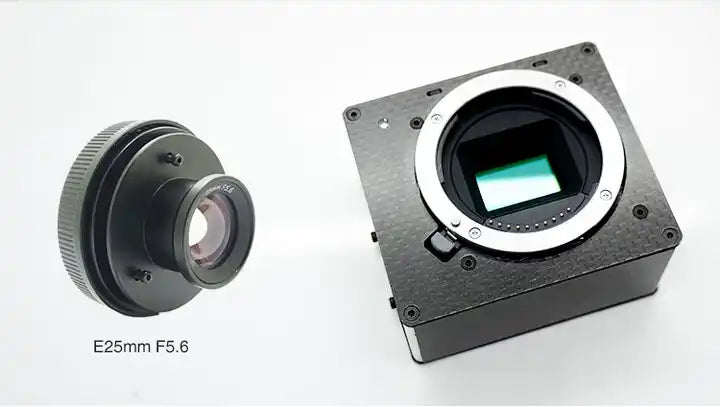

Lens compatibility
|
E-mount lenses
|
Parameter Setting
|
Button/USB
|
|||
|
Hot Shoe Signal
|
supported
|
Data Reading
|
SD card/USB
|
|||
|
Shutter Trigger
|
relay(low level)
|

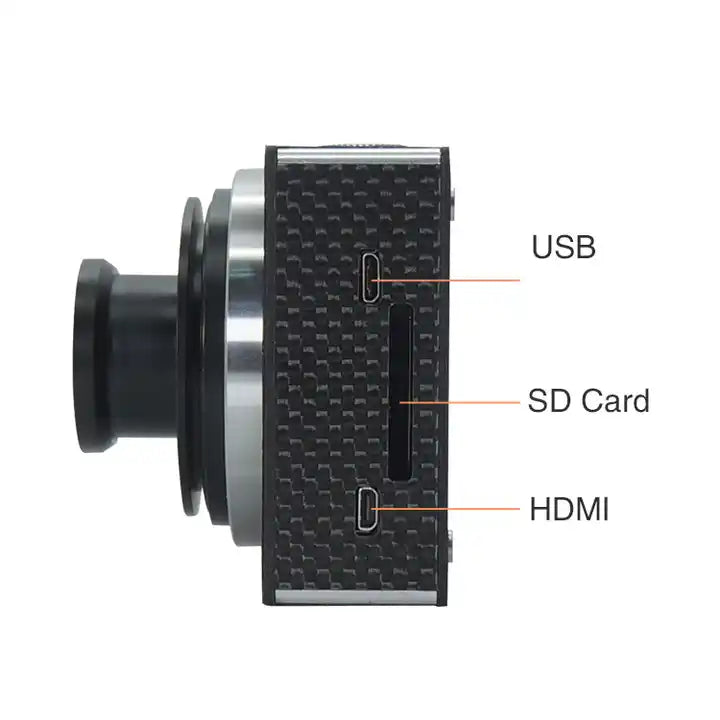

Interface
|
HDMI USB2.0
|
|||
|
Shutter Speed
|
30-1/4000sec
|
Power
|
8.4V
|
|||
|
Image Size (pixels)
3:2
|
3:2 L: 6000x4000(24M),M:4240x2832(12M),
S:3008x2000(6M)
|
Size
|
7.6x6.2x2.6cm
|
|||
|
Image Size (pixels)
16:9
|
16:9 L: 6000x3376(20M),M:4240x2400(10M),
S:3008x1688(5.1M)
|
Weight
|
112.5g
|
|||
|
EXPOSURE MODES
|
Programmed AE(P)，Aperture priority(A), Shutter-speed priority(S), Manual(M)
|
|
|
|||
|
Continuous shooting
|
Up to 6FPS
|
|
||||
