New HTRC HT208 AC/DC 420W 20A 4.3 Inch Color LCD Touch Screen Battery Balance Charger Discharger

Overview:
>Full Aluminium Alloy Appearance Design,Solid & Well-made.Built-in Cooling fan for easy heat dissipation. 4.3 inch Color LCD Disply Touch Screen, Easy Reading and Operation
>AC/DC Dual Input,High Power Circuit,Max Charing Power 420W, Max Charging current 20A.
>Practical for variety of batteries.1-8s Lilon/LiPo/LiFe/LiHV,1-20cell Nicd/NiMh, 2-24V PB battery. Smart Battery I,II,III.
>Multi-function: Balance Charge, Discharge,Terminal Voltage Control,Lithium Battery Capacity & Voltage Checking, Battery Internal Resistance Checking, Individual Cell Voltage Calibration,Data Storage and Loading,Charging Status Graphic Photo Display, Digital DC Power Supply 5-25V ,0.1-20A, USB DC Output 5V 2.1A,
>Users Could Set The low input voltage, Capacity Limit, Temperature Threshold and Processing Time Limit Which Makes the Charger Safe to Use.

Features:
>4.3 " Color LCD Disply Touch Screen, easy reading and operation
>Full Aluminium alloy Appearance Design facilitate heat dissipation,
>Built in cool fan, Good Cooling System.
>With rubber pads, prevent sliding and the air can circulate.
>AC/DC Dual Input. 420W Independent output
>Support New LIHV High Power Battery and Smart battery.
>Automatic identification of Li-Po batteries cells.
>Battery management check battery capacity and voltage balancer. 8 Memories Data
>Soft switching is also introduced can reduce radiation interference
>Built-in PFC can improve the energy consumption from mainpower grid evidently
>Support USB DC Output 5v/ 2.1A
>Support for firmware upgrades

Specification:
Input AC 100-240V / DC 10-30V
Charge power: 420W
Discharge power:25W
Charge current range:0.1-20A
Discharge current range:0.1-5A
Digital DC Power:5-25V, 0.1-20A
Lilon/LiPo/LiFe/LiHV cell count :1-8cells
NiMH/NiCd: 1-20cells
Current drain for balancing: 500mA/cell
PB: 2-24V
Smart Battery: I/II/III
Dimension: 15.6*14.3*7cm
Net Weight:1.008kg
Gross Weight:1.52kg

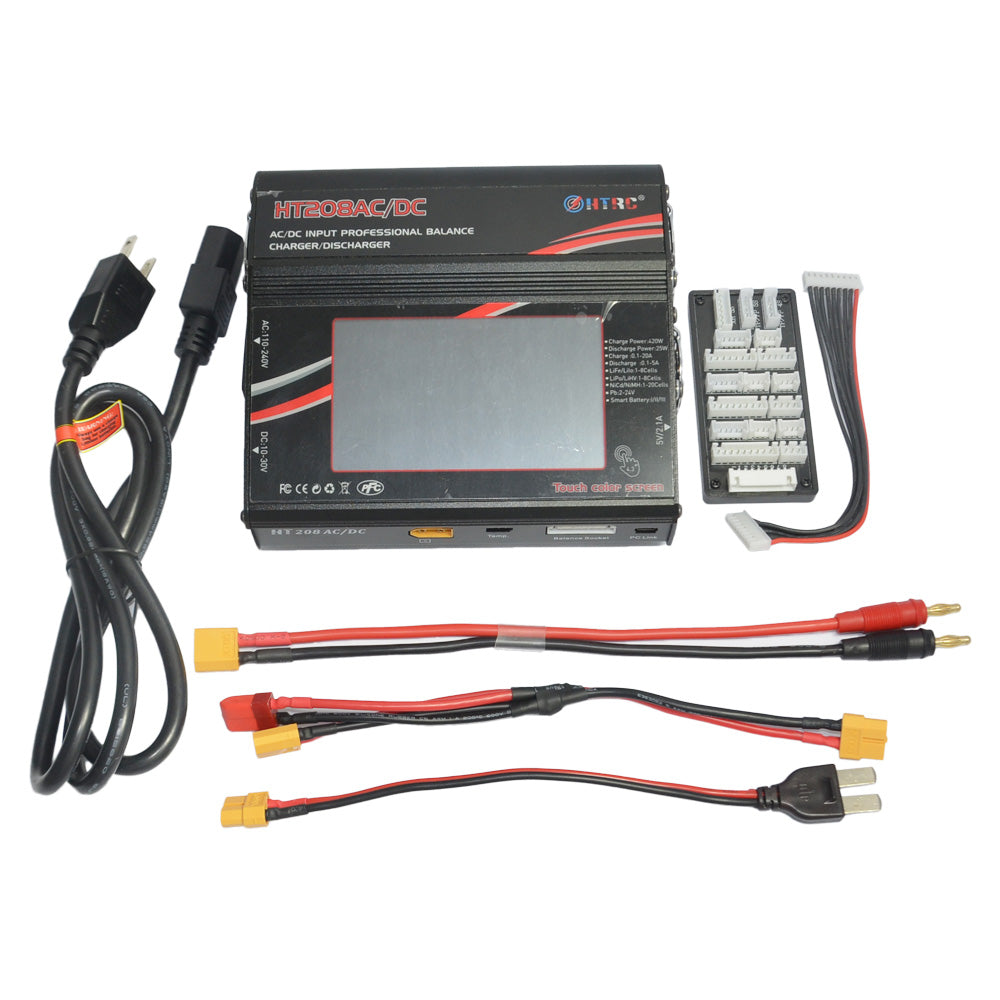

Package list:(Battery not include)
1 x HT208 Charger
1 x DC Cord
1 x Charge Cable
1 x Charging board with pin cord
1 x AC Cord (US EU UK AU optional)
